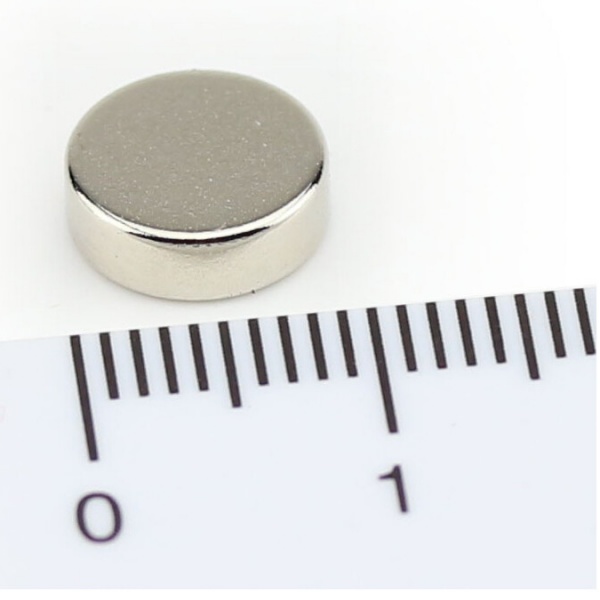

Neodymium Disc Magnets 9x3mm

Neodymium disc magnets 9x3mm are delivered with NiCuNi plated. You can choose N54 for the strongest magnetic force. Lead time is about 10 days, discount is offered for large quantity. The following is the specification reference of N52 9x3mm disc magnets.

            N52  Neodymium Disc Magnets 9x3mm

Category

Disc Magnet

Material

Neodymium,N52

Diameter

9mm

Thickness

3mm

Magnetized

Axially(poles on flat ends)

Coating

NiCuNi

Pull Force

approx. 4.63 lbs

Weight(1 piece)

1.43 g

Tolerance

+/-0.05mm

Max.Working Temp.

80℃

Central Surface Field

4100 Gauss
