Ferrite Pot Magnets With Hooks

Ferrite Pot Magnets With Hooks

After screwing internal threaded ferrite pot (cup) magnets with steel hooks, they can be used for hanging application.In some supermarkets, large DIY stores, exhibition areas, car ferries, cruise ships and other places, you can see posters, banners and displays hanging from the ceiling, and many hooks consist of a ferrite pot magnet with a steel hook.Only when used as a ceiling hook can the pulling force of the ferrite cup magnet be maximized.Our ferrite(ceramic) pot magnets with hooks are supplied with wide size selection,which range from 10mm to 125mm.

Popular Sizes Of Ferrite Hook Magnets

Ferrite Hook Magnets 20x6mm
  • Ø20mm small white painted ferrite hook magnets
  • ferrite cup magnets 20x6mm with hook for hanging
Ferrite Hook Magnets 25x7mm
  • Ø25mm ferrite hook magnets with white painted
  • 25x7mm ferrite(ceramic) hook magnets with hooks
Ferrite Hook Magnets 32x7mm
  • Ø32mm white painted ceramic(ferrite) magnetic hooks
  • 32x7mm white ferrite(ceramic) hook magnets-pull 18 lb

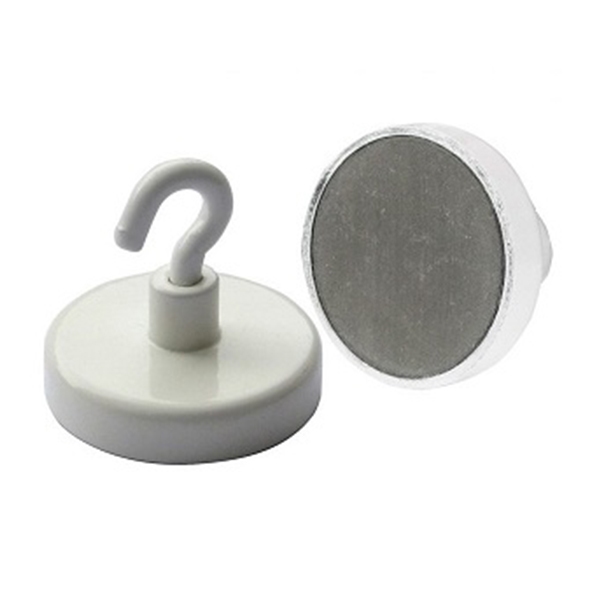

Ferrite Hook Magnets 40x8mm
  • Ø40mm white color ferrite(ceramic) hook magnets
  • Ø40x8mm ceramic(ferrite) magnetic hooks-pull 28lb
Ferrite Hook Magnets 50x10mm
  • Ø50x10mm ferrite cup magnets with hook for hanging
  • 50x10mm white color ceramic(ferrite) hook magnets-pull 50 lb.
Ferrite Hook Magnets 63x14mm
  • Large ferrite(ceramic) magnetic hooks Ø63x14mm
  • Ø63mm big white ferrite hook magnets-pull 78 lb.

Ferrite Hook Magnets For Sales

As an alternative to expensive rare-earth magnets,ferrite hook magnets(magnetic hooks) are the best choice for outdoor use or when strong magnetic forces are not needed.We carry out ferrite hook magnets(magnetic hooks) with full size range for sale,that include 10mm,13mm,16mm,20mm,25mm,32mm,36mm,40mm,47mm,50mm,57mm,63mm,80mm,100mm and 125mm.The grade of Y30BH are adopted on ferrite(ceramic) magnetic hooks,the steel shell are plated with Zinc or Nickel, and various colors can by sprayed on the surface of magnetic hooks.

Advantages Of Ferrite Hook Magnets

The ferrite custom magnetic hooks(hook magnets) are resistant to high temperatures and can be used up to 250 degrees Celsius.

The ceramic hook magnets have good corrosion resistance and are commonly used as an outdoor magnetic hooks

Hooks are changed with dimension,and easy to remove and replace, and can also be replaced with eyelet hooks.

Ceramic hook magnets(magnetic hooks)are supplied at the cheapest price,much cost is save by using them.

Specification Overview Of All Standard Ferrite Hook Magnets

Specification Overview Of All Standard Ferrite Hook Magnets


Item Code

D(mm)

d(mm)

H(mm)

h(mm)

M(mm)

Magnetic Force(N)

Ferrite-E-10

10

6

11.5

4.5

M3

4

Ferrite-E-13

13

6

11.5

4.5

M3

10

Ferrite-E-16

16

6

11.5

4.5

M3

18

Ferrite-E-20

20

6

13

6.0

M3

30

Ferrite-E-25

25

8

15

7.0

M4

40

Ferrite-E-32

32

8

15

7.0

M4

80

Ferrite-E-36

36

8

16

8.0

M4

10.0

Ferrite-E-40

40

10

18

8.0

M5

125

Ferrite-E-47

47

8

17

9.0

M4

180

Ferrite-E-50

50

12

22

10.0

M6

220

Ferrite-E-57

57

8

18.5

10.5

M4

280

Ferrite-E-63

63

15

30

14.0

M8

350

Ferrite-E-80

80

20

34

18.0

M10

600

Ferrite-E-100

100

22

43

22.0

M12

900

Ferrite-E-125

125

25

50

26.0

M14

1300
