Pot Magnets With Countersunk(Screw) Hole

Pot Magnets With Countersunk(Screw) Hole

countersunk pot magnets

 A compact magnet system consisting of a steel shell with high permeability and a countersunk magnet is a countersunk pot magnet (also known screw - on pot magnet). The cup magnets with countersunk hole are easy to install. The countersunk cup magnet has a single attraction surface, and the magnetic lines of force are more concentrated. The bolt with a countersunk head is flush with or below the top of the magnet, which optimizes the suction surface of the countersunk pot magnets. Neodymium, ferrite, and smco magnets are all available for our countersunk pot magnets.

Countersunk pot(cup) magnets are very suitable for closing mechanisms using magnets, in which the screw heads must be hidden, such as cabinet doors, drawers, door locks and door fixing devices. As a professional wholesale pot magnet supplier, Beilun Meank provides quality china countersunk pot magnets at great prices. Feel free to contact at any time.

China Countersunk Pot Magnet For Sale

16mm Countersunk Pot Magnets
  • Rare Earth Neodymium Countersunk Pot Magnets Ø16x5mm-m3-nickel Plated
  • Ø16mm Neodymium Rare Earth Countersunk Screw on Pot Magnets-pull 11 Lb
20mm Countersunk Pot Magnets
  • Neodymium Rare Earth Countersunk Pot Magnets 20x7mm-nickel Plated
  • Ø20mm Rare Earth Neodymium Pot Magnets with M4 Countersunk Hole-pull 6kg
25mm Countersunk Pot Magnets
  • Ø25mm Countersunk Rare Earth Neodymium Pot Magnets-m5-nickel Plated
  • Ø25mm Rare Earth Neodymium Pot Magnets with Countersunk Hole-pull 30 Lb
32mm Countersunk Pot Magnets
  • Ø32x8mm Countersunk Rare Earth Neodymium Pot Magnets with Nickel Plating
  • Powerful Rare Earth Countersunk Pot Magnets 32x8mm - Pull 25 Kg

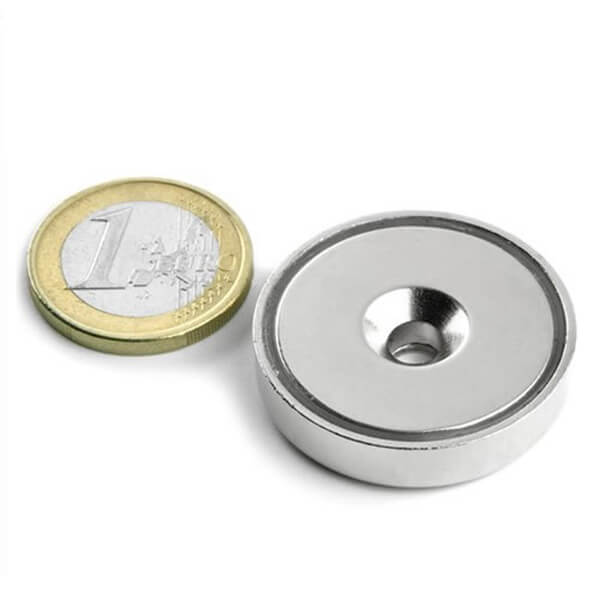

36mm Countersunk Pot Magnets
  • Rare Earth Neodymium Countersunk Pot Magnets 36x9mm - Nickel Coating
  • Ø36mm Powerful Neodymium Countersunk Holding Pot Magnets - Pull 29kg
42mm Countersunk Pot Magnets
  • Neodymium Rare Earth Countersunk Pot Magnets Ø42x9mm-accept M6 Screws
  • Ø42mm Neodymium Pot Magnets with Countersunk Screw Hole - Pull 37 Kg
48mm Countersunk Pot Magnets
  • Powerful Rare Earth Neodymium Countersunk Pot Magnets Ø48x11.5mm
  • Ø48mm Neodymium Countersunk Pot Magnet Accept M8 Screws - Pull 68kg
60mm Countersunk Pot Magnets
  • Heavy Duty Rare Earth Neodymium Countersunk Pot Magnets Ø60x15mm
  • Ø60mm Strong Neodymium Pot Magnets with M8 Countersunk Hole - Pull 112kg
75mm Countersunk Pot Magnets
  • Strong Rare Earth Neodymium Countersunk Pot Magnets - Ø75x18mm
  • Powerful Countersunk Neodymium Pot Magnets Ø75mm - Pull 162 Kg

Standard Countersunk Pot magnets-Neodymium Specification Overview

China Countersunk Pot Magnet

Model(A)

Dimension(mm)

Pulling Force

(kg)

Dead Weight

(g)

D

D1

D2

H

NdFeB-A16

16

3.5

6.5

5

5

7

NdFeB-A20

20

4.5

8.6

7

6

13

NdFeB-A25

25

5.5

10.5

8

14

23

NdFeB-A32

32

5.5

10.5

8

25

39

NdFeB-A36

36

6.5

12

9

29

47

NdFeB-A42

42

6.5

12

9

37

76

NdFeB-A48

48

8.5

16

11.5

68

128

NdFeB-A60

60

8.5

16

15

112

273

NdFeB-A75

75

10.5

19

18

162

528


Cup Magnets With Countersunk Hole Features

Magnetic core: The cup magnets with countersunk holes are composed of N35 neodymium magnets. They are the strongest mono-pole countersunk magnets.

Coating: Most of neodymium countersunk pot (cup) magnets are plated with nickel or galvanized.

Holes: The size of the screw hole changes with the size of the countersunk pot magnet, which fits M3, M4, M5, M6, M8 and M10 countersunk screws.

Diameter range: 16mm, 20mm, 25mm, 32mm, 36mm, 42mm, 48mm, 60mm and 75mm are supplied as standard sizes for countersunk neodymium pot (cup)magnets.

Uses: Neodymium cup magnets with countersunk holes are used for mounting and holding where super-pulling force is needed.

Order China Countersunk Pot Magnet From Beilun Meank For Better Deal

We are a leading countersunk pot magnets supplier,you can order all type of countersunk pot magnets from us. Our countersunk neodymium pot magnets are supplied with short lead time and cheap prices. All our neodymium countersunk pot magnets are guaranteed with strongest pulling force and the best plating quality. Contact us today for a better deal.
