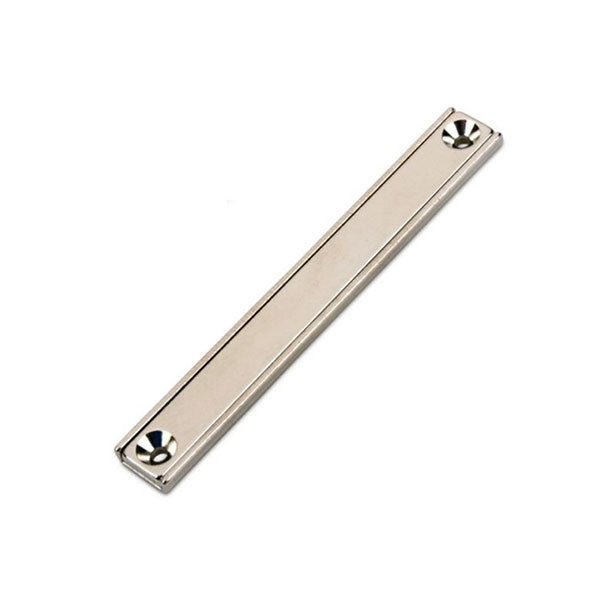

Channel Magnets 100x13.5x5mm

The second longest rare earth neodymium channel magnets measured 100x13.5x5mm among wholesale pot magnets, both ends are designed with an M3 countersunk hole to fix them stably. Large size assures the countersunk channel magnets have amazing pulling force, even if the lowest grade ones have about 36 kg holding force. Without specified demands, our 100x13.5x5mm neodymium channel magnets are delivered with nickel plated.

Characteristics Of Neodymium Channel Magnets 100x13.5x5mm

Dimension: 100 x 13.5 x 5mm (L x W x T)

Holes: two M3 countersunk holes

Magnetic Strength: approx. 79 lb

Coercivity: ≥955KA/m

Surface Treatment: Nickel-Copper-Nickel(three layers)

Specification Of 100x13.5x5mm Neodymium Channel Magnets

Category

Channel Magnet

Material

Sintered NdFeB

Grade

N35

Length

100 mm

Width

13.5 mm

Thickness

5 mm

Countersunk Holes

M3

Tolerance

+/- 0.1 mm

Coating

Nickel-plated (Ni-Cu-Ni)

Strength

approx. 36 kg

Max. working temperature

80°C

Weight

47 g
