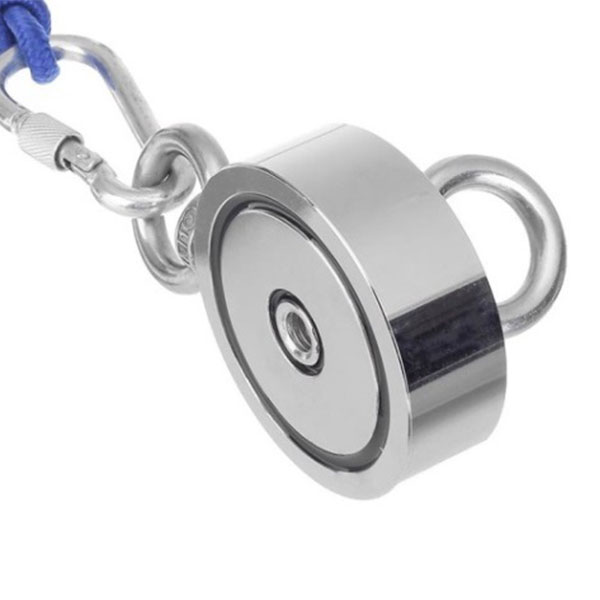

Double Sided Fishing Magnets 116mm

Name: Double Sided Fishing Magnets 116mm
Brand: NingBo BeiLun Meank Magnetics Co.,Ltd.

It is the most popular size in the category of double sided neodymium fishing magnets,the dimension of steel house is 116mm diameter and 40mm height.There is a M10 threaded hole on both side and magnetic surface,which provide the big double sided magnetic fishing magnets different working ways.The rated pull force of double sided neodymium fishing magnets Ø116x40mm is 400kg.Nice finishing and separate package are guaranteed.

Characteristics Of Double Sided Fishing Magnets 116mm

Big size and rare earth magnets make the Ø116mm double sided fishing magnets super strong,the vertical force reach 400 kg.

The gap is filled with epoxy glue, providing good sealing to this double-sided neodymium fishing magnet series.

All big double sided neodymium fishing magnets 116x40mm are supplied with single-packaged.

Specification Of Double Sided Fishing Magnets 116mm

Category	Fishing(Search) Magnet
Type	Double Sided
Magnet Material	Neodymium
Item Code	DSMR-D116
Diameter(D)	116
Height(H)	40
Tolerance	+/-0.1mm
Threaded Hole (M)	M10/10
Coating	Ni-Cu-Ni
Magnetic Force(kgs)	400*2
Weight(kg)	3.10

Get In Touch With BeiLun Meank

lf you have any questions, you can contact us to help you solve them.
