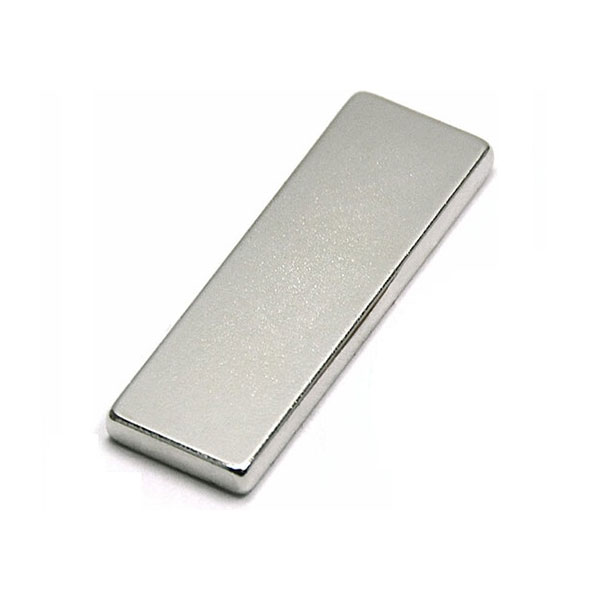

Neodymium Bar Magnets 3"x 1/4"x 1/4"

3"x 1/4"x 1/4" (76.2 x 6.35 x 6.35mm) is a standard size for the rectangular neodymium bar magnets in the USA market. High grade of N52 gives the neodymium bar magnets 3"x 1/4"x 1/4" (76.2 x 6.35 x 6.35mm) amazing strong pulling force and countless uses. Nickel-copper-nickel plating makes neodymium bar magnets rust-resistant. Specified packages can be done on the strong bar magnets. Please contact us to get a cheap price for large orders.

Characteristics Of Neodymium Bar Magnets 3!x 1/4!x 1/4!

Remanence (Br): 14300-14800 Gauss for block bar magnets neodymium N52.

Coercivity (Hcj): ≥876.

Magnetic Energy Product (BH-max): 50-53 MGOe for N52 neodymium block magnet bars.

Max. Working Temperature: 60℃.

Corrosion Resistance: Neodymium bar magnets for sale need coating.

Specification Of N52 Neodymium Bar Magnets 3"x 1/4"x 1/4"

Category	Bar Magnet
Material	Sintered NdFeB
Grade	N52
Length (L)	3"(76.2mm)
Width (W)	1/4"(6.35mm)
Thickness (T)	1/4" (6.35mm)
Magnetization direction	Through Thickness
Coating	NiCuNi
Strength	approx.32.7 LBs
Weight(1 piece)	23g
Tolerance	+/-0.05mm
Max.Working Temp.	80℃
Central Surface Field	5248Gauss

Safety Warning:

High grade neodymium bar magnets are easy to break, they must be used carefully.
Electronics and little children must be kept away from strong neodymium bar magnets.
If a neodymium bar magnet break, dispose of the pieces thoroughly.
