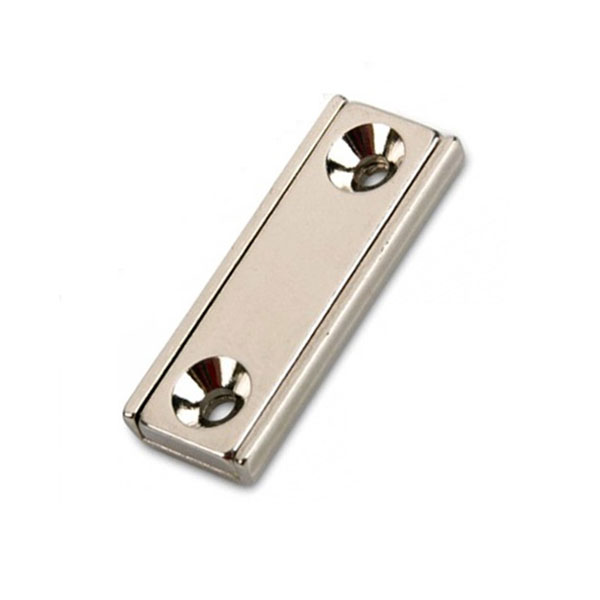

Channel Magnets 40x13.5x5mm

40x13.5x5mm is a popular medium neodymium channel magnets, it is designed with two M3 countersunk holes. Standard rare earth neodymium channel magnets 40x13.5x5mm are plated with nickel, grade of N35 gives them 17 kg pull force. Because of nice finishing and reasonable price, countersunk channel magnets 40x13.5x5mm are regularly ordered by many dealers from our wholesale pot magnet factory.

Characteristics Of Neodymium Channel Magnets 40x13.5x5mm

Dimension: (L x W x T) 40x13.5x5mm

Holes:  two M3 countersunk holes

Magnetic Strength: approx. 37.4 kg

Coercivity: ≥955KA/m

Surface Treatment: Nickel-Copper-Nickel

Specification Of 40x13.5x5mm Neodymium Channel Magnets

Category

Channel Magnet

Material

Sintered NdFeB

Grade

N35

Length

40 mm

Width

13.5 mm

Thickness

5 mm

Countersunk Holes

M3

Tolerance

+/- 0.1 mm

Coating

Nickel-plated (Ni-Cu-Ni)

Strength

approx. 17 kg

Max. working temperature

80°C

Weight

19 g
