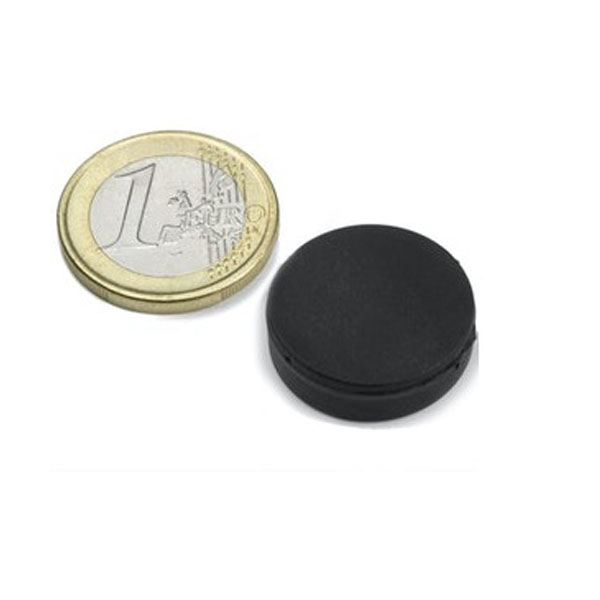

Rubber Coated Magnets 22x6.4mm

The powerful neodymium rare earth disc magnets are supplied with soft rubber coating, the total dimension is Ø22x6.4mm which include the rubber layer. The thickness of rubber layer weakens the vertical magnetic force of the magnet. For more technical date, you can read the following table. Our rubber coated neodymium disc magnets 22x6.4mm are always supplied at the cheap prices, and with best quality.

Characteristics of Rubber Coated Magnets 22x6.4 mm

Waterproof: With rubberized, the strong magnets 22x6.4mm have the advantage of being waterproof which makes it sells well.

Anti-sliding: The soft rubber layer increases the friction between rubber-coated waterproof magnets and the contact surface.

Specification of Rubber Coated Magnets 22x6.4mm


Category

Rubber coated magnets

Shape

Disc

Material

NdFeB

Grade

N42

Dimension

22mm Dia.x6.4 mm thick

Tolerances

± 0.1 mm

Diameter

22mm

Thickness

6.4mm

Pull Force

3.9 kg

Br-max

13200 Gauss

BH-max

42 MGOe

Working  Temp. Max.

80°C

Weight

12g
