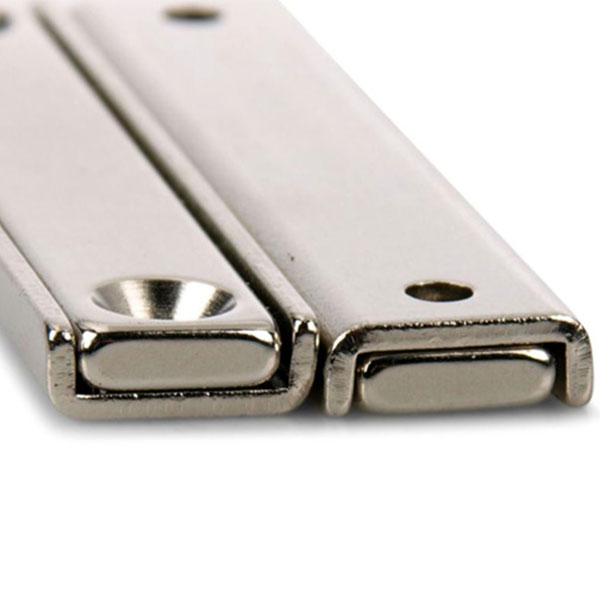

Channel Magnets 60x13.5x5mm

In the category of neodymium channel pot magnets,60x13.5x5mm is a standard medium dimension which have M3 screw hole in each end. Nickel is the common coating for standard neodymium channel magnets 60x13.5x5mm if no specified requirement on it. Bue our wholesale pot magnet factory also provides other customized coatings. 30kg amazing magnetic force makes countersunk channel magnets 60x13.5x5mm used in various fields.

Characteristics Of Neodymium Channel Magnets 60x13.5x5mm

Dimension: 60x13.5x5mm (L x W x T)

Mounting Hole: two M3 countersunk holes

Magnetic Strength: approx. 66 lb

Coercivity: ≥955KA/m

Surface Treatment: Nickel-Copper-Nickel

Specification Of 60x13.5x5mm Neodymium Channel Magnets

Category

Channel Magnet

Material

Sintered NdFeB

Grade

N35

Length

60 mm

Width

13.5 mm

Thickness

5 mm

Countersunk Holes

M3

Tolerance

+/- 0.1 mm

Coating

Nickel-plated (Ni-Cu-Ni)

Strength

approx. 30 kg

Max. working temperature

80°C

Weight

28 g
